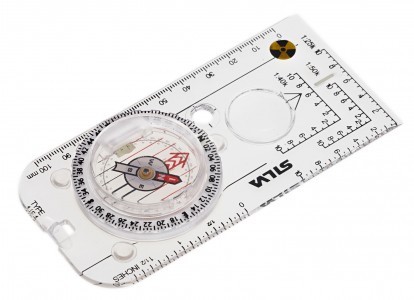

Ranger 54B 6400 mls compass

Silva compass

Probably the most resourceful compass in the world for artillery; target acquisition and command posts.

Features:
  • Global Balancing System
  • Type of compass - Silva 1-2-3 System combined with a Lensatic precision sighting compass
  • Compass capsule / needle
  • Sighting System - Prismatic precision
  • Magnifying lens
  • Illumination / active time after activation in light - Yes 7.5 years
  • Luminous compound
  • Silicon friction feet
  • Other - Patented red/black N/S lines in capsule
Specifications
  • Available graduations 6400/360
  • Resolution degrees / mils
  • Outer ring: 2 / 50 Precision sighting scale: 1 / 20
  • Measuring scales on base plate 1:25k, 1:50k, 1:40k, mm, inch
  • UTM position plotting scales (Romer scales) 1:25k, 1:50k, 1:40k
  • Settling time from 90 degree angle within +/- 3 deg 4 sec
  • Settling time from 90 degree angle to complete rest 6 sec
  • Accuracy +/- 0,5 degree (8,9 mils)
  • Waterproof IP68 - (10 m)
  • Altitude use 5000m@-15 C
  • Impact resistance 30g in XYZ directions and free fall from 1,5 m height into gravel
  • Temperature operating range -40 to +60 C
  • Material Acrylic
  • Size (mm) 126x60x16
  • Weight 39g

Price: $349
